3000t Hydraulic Door Making Embossing Machine

Factory Price, OEM, ODM

Description

Reviews(0)

Hydraulic sheet metal forming press is an exclusive machine for pattern making and shape forming of security doors, steel doors, inside doors, stainless steel doors, iron gates, etc.Welcomed by security door manufacturers, steel wholesale markets, etc. Hydraulic embossing machine is characterized as high efficient,convenientand safe operating, energy saving, appearance attracting, and low cost.Lots of our experienced engineers improved designs to make the machine perfect in simply structure and well perform.Easy to operate, easy to learn, a few minutes for a person to learn how to operate.

Construction

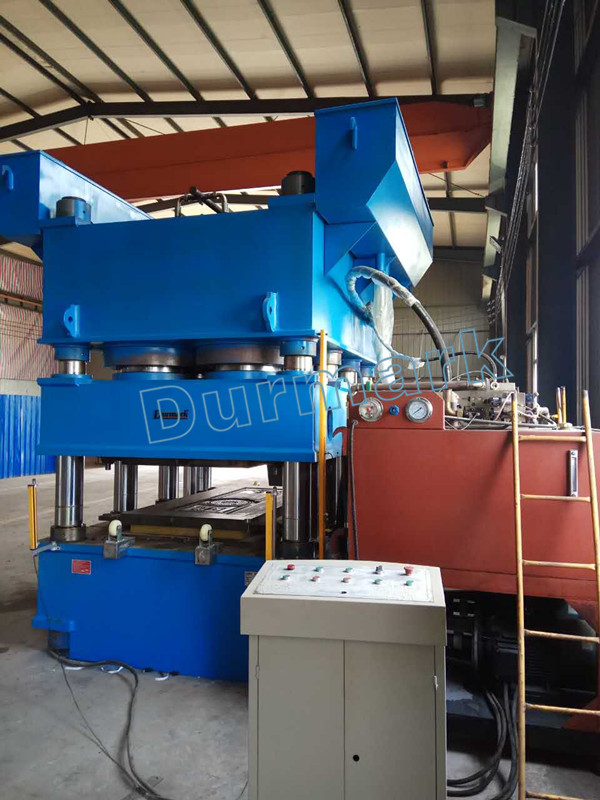

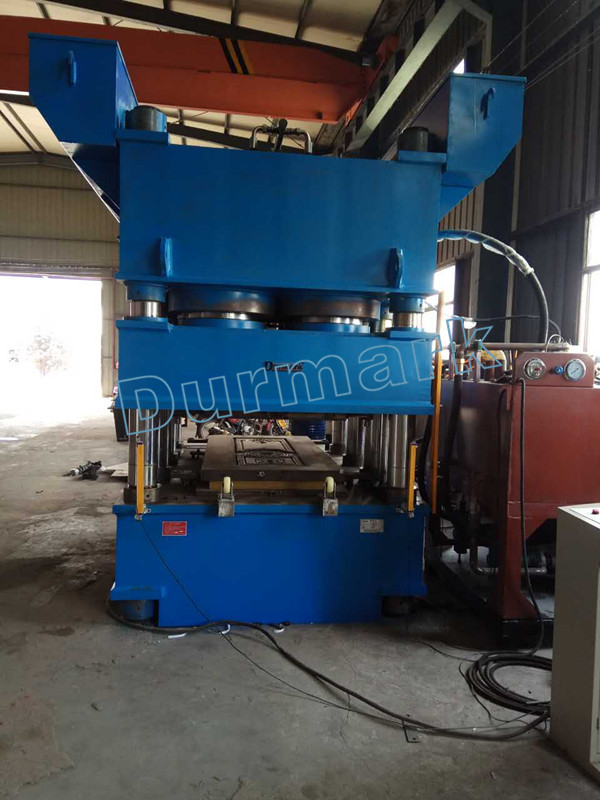

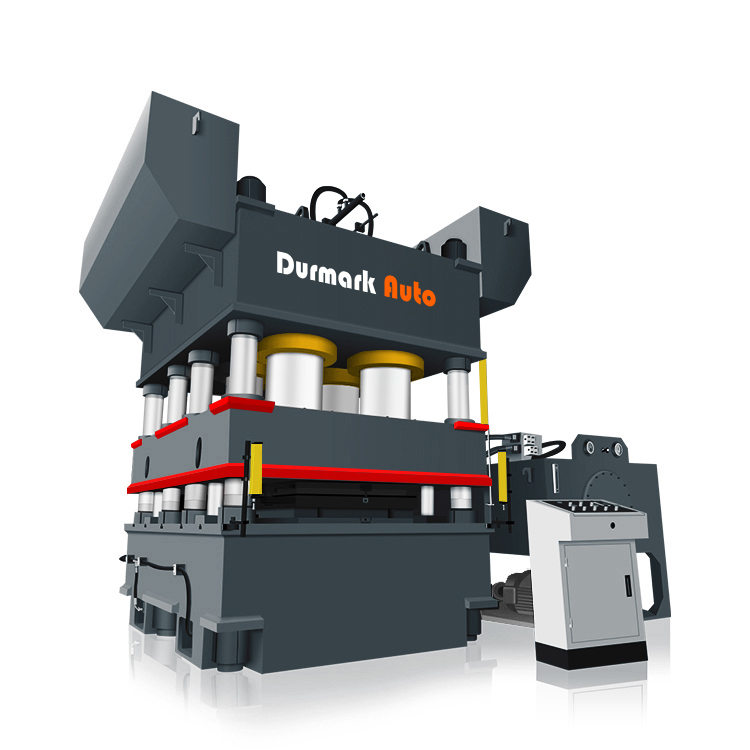

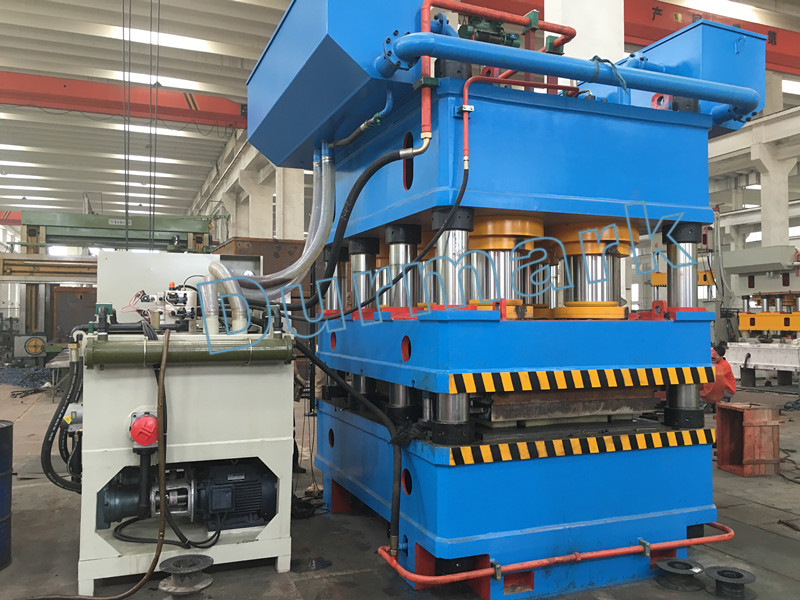

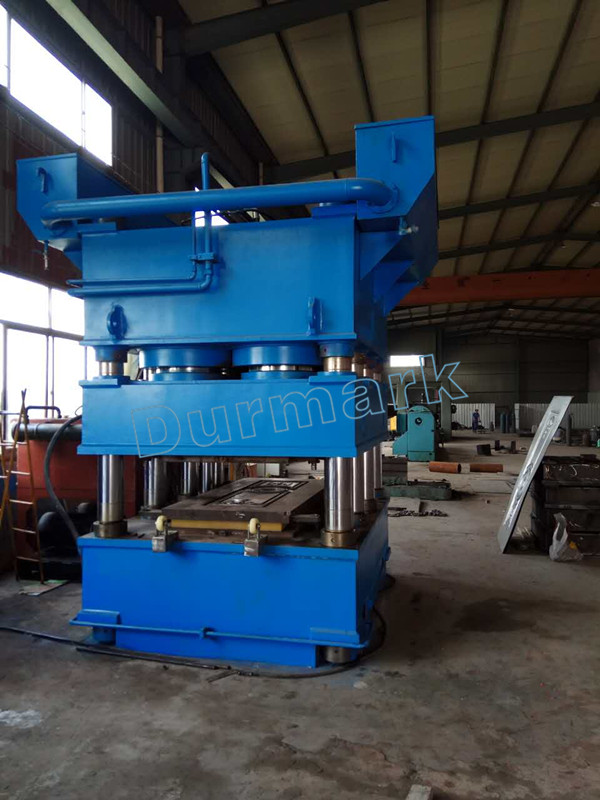

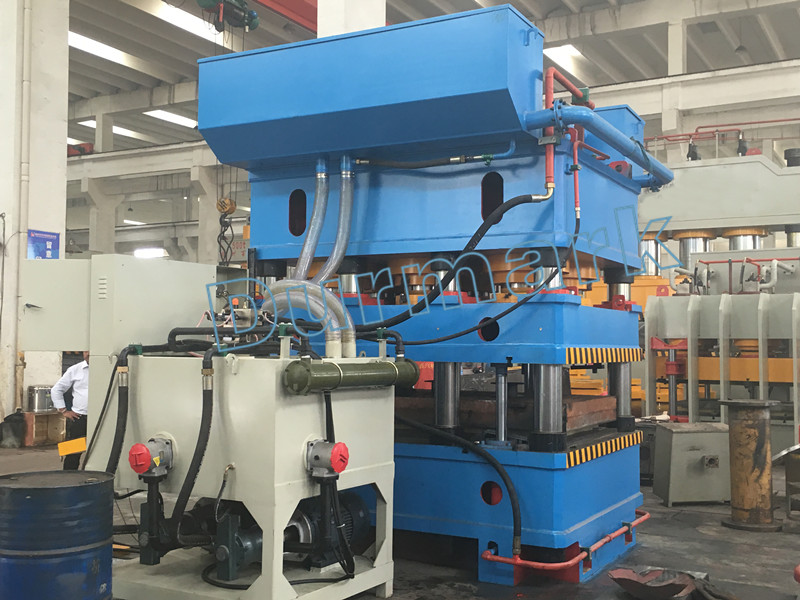

1．Three beams and eight columns construction. Machine body combined with worktable, slider(middle beam), upper beam, columns, bolt, etc. Beam adopted steel plate welding. After welding, go through inspection and handle to ensure the machine’s rigidity and accuracy.

2．Machine has high rigidity and high strength. Machine’s precision adjusting by adjusting column’s nut. The machine has a compact structure, beautiful appearance.

3．Slider(middle beam) movement relay on the column and inside self-lubricating bearing guide bush for up and down motion.

4.Main oil cylinder, column adopt 45# steel. Column, piston rod’s surface go through quenching to ensure hardness arrived HRC45-52. Oil cylinder seal uses Japan NOK sealing.

Construction

2．Machine has high rigidity and high strength. Machine’s precision adjusting by adjusting column’s nut. The machine has a compact structure, beautiful appearance.

3．Slider(middle beam) movement relay on the column and inside self-lubricating bearing guide bush for up and down motion.

4.Main oil cylinder, column adopt 45# steel. Column, piston rod’s surface go through quenching for ensuring hardness arrived HRC45-52. Oil cylinder seal uses Japan NOK sealing.

1. This equipment is mainly used at security door, steel wooden door, inside door, stainless steel doors, iron gate, etc production factory, and steel market, for punching press different pattern security door panel, stainless door panel, inside door panel. This machine’s advantages are high efficiency, convenient and safe operating, energy saving, appearance attracting, and low cost.

2. Independent power mechanism and electrical system are controlled by press-button enabling realize manual. And equipped with a movable button station. Two operation ways: semi-automatic, and automatic operation.

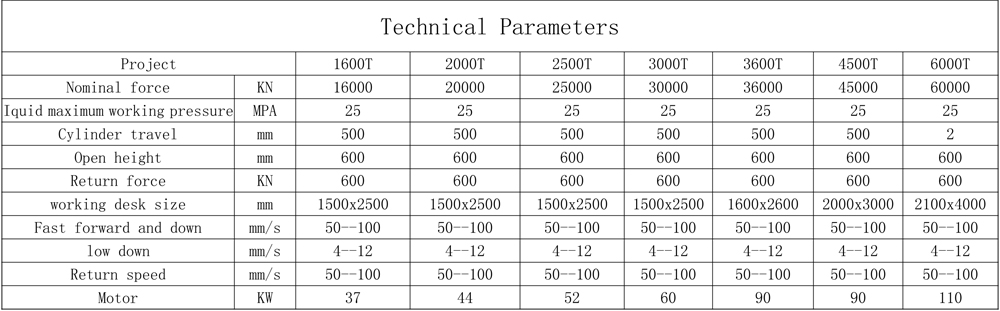

3. Working pressure, speed, and stroke can be set in a certain range according to different technological requirements.

Features

1. With PLC control

2. 3 operating ways for choice

3. Integral forged 45# steel, quenching, and tempering

4. High efficient, convenient and safe operation

5. Best forming effect, clear 3-dimensional pictorial

6. High quality steel plate welded with accuracy and stability

7. Independent electrical and hydraulic power mechanism

8. Simply structured and well-performed for energy saving

9. Available working pressure, speed, and stroke settings

Hydraulic sheet metal door making machine is an exclusive machine for pattern making and shape forming of security doors, steel/wooden doors, inside doors, stainless steel doors, and iron gates.

Major demands of this machine are generally from security door manufacturing companies, steel wholesale markets. This door making machine is mainly used for kinds of the door industry. Kinds of different designs for choose. Hydraulic door making machine is export to all over the world.
