NC Type Press Brake

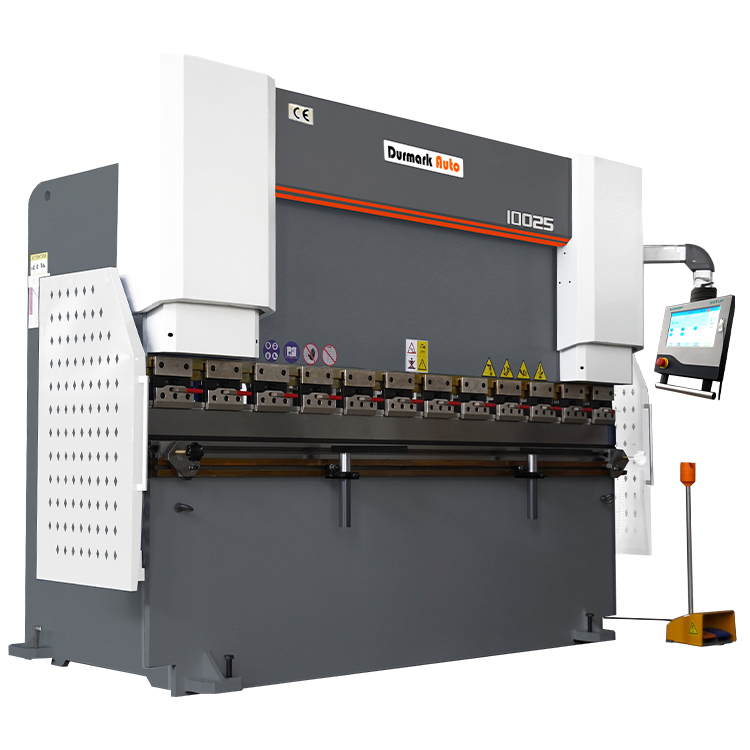

NC E21 Control Plate Bending Machine 160T3200mm Press Brake

Press Brake Manufacturers, Press Brake for Sale, Bending Machine Factory
NC E21 Control Plate Bending Machine 160T3200mm Press Brake
NC E21 Control Plate Bending Machine 160T3200mm Press Brake
NC E21 Control Plate Bending Machine 160T3200mm Press Brake
NC E21 Control Plate Bending Machine 160T3200mm Press Brake
NC E21 Control Plate Bending Machine 160T3200mm Press Brake

Description

Reviews

Foot Switch                          Estun E21



Back guard                           Electrical box



Front side

Overall welded and processed structure.

Closed loop control mode composed of electric-hydraulic servo valve and measure ruler.

Ensure the highest control precision, bending accuracy and repositioning accuracy are also reach to the highest level.
Back gauge mechanism can be multi-axes controlled.

Integrated hydraulic system decreases the pipe connections, oil leakage, and increases the stability and overall beautifies.

Worktable equipped with hydraulic and mechanical compensation to avoid the deformed upper beam from affecting the quality of the work piece, it is automatically adjusted by the CNC controller with convenient and accuracy.

CNC controller normally uses Holland DELEM, Italy ESA, Swiss CYBELEC, all with multi-languages.

Standard Equipment

1.Estun E21 NC control System

2.Powered Depth Y-axis & Back gauge X-axis

3.DELTA Inverter controlled back gauge

4.HIWIN Ball screws & Polished rod

5.Plate Support Arms

6.Bosch-Rexroth Hydraulic

7.Germany EMB Tubing connector

8.Siemens Main Motor

9.Telemecanique/Schneider Electrics

10.Hydraulic & Electrical overload protection


Safety Equipment (CE & NR12)

1.Safety Standards(2006/42/EC):

   1)EN 12622:2009+A1:2013
   2)EN ISO 12100:2010
   3)EN 60204-1:2006+A1:2009

2.Front Safe Fence/Safenty Linght              Curtain(Optional)

3.South Korea Kacon Foot Switch

4.Back metal safe fence

5.Safety relay with Monitor the pedal switch and safety protection
