W12 Hydraulic Four Roller Rolling Machine with Best quality

best quality, supplier, rolling machine, hydraulic rolling machine
W12 Hydraulic Four Roller Rolling Machine with Best quality
W12 Hydraulic Four Roller Rolling Machine with Best quality
W12 Hydraulic Four Roller Rolling Machine with Best quality
W12 Hydraulic Four Roller Rolling Machine with Best quality
W12 Hydraulic Four Roller Rolling Machine with Best quality

Description

Reviews

The machine is suitable for the bending work of metal sheet, can be rolled circular, curved and within a certain range of tapered workpiece, and the end of the board pre-bending function, the remaining straight edge, high efficiency, and in the Machine on the metal plate for a rough leveling.

The device has a pre-bending function of the end of the plate, the metal sheet can be a feeding, without U-turn to complete the first end of the board and the workpiece roll forming. The working roller on the machine is driven by the main drive roller, the lower roller and both sides of the roller are used hydraulic transmission, lifting displacement by the computer control, automatic leveling, screen display, flip the bearing body dumping and reset the use of hydraulic transmission, Equipped with a balance mechanism, you can easily unload the workpiece after the roll and the cylinder. With mobile independent console, can be moved at any time operation, the machine has a safety interlock device, the machine high level of technology, full-featured, high precision, easy to operate. Is the energy, transportation, petroleum, chemical, boiler, shipbuilding, hydropower, metal structure and other industries round, curved and tapered workpiece the most preferred preferred models.

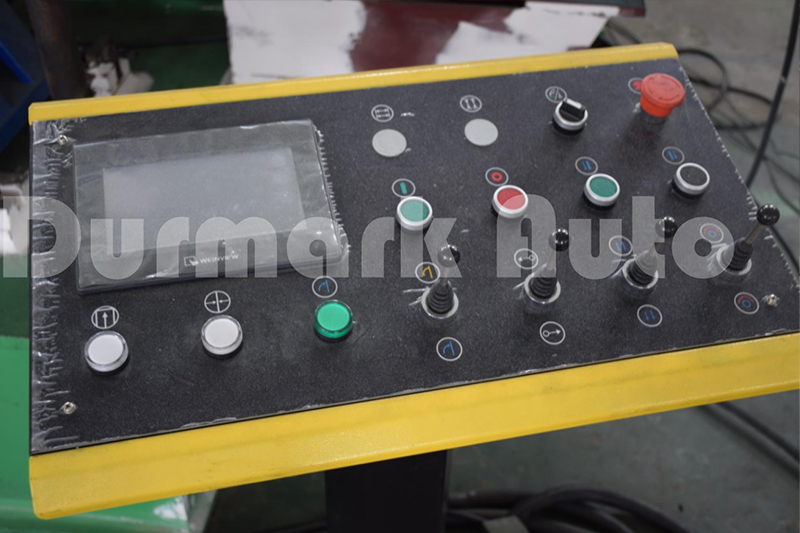

1, the model for the digital control system, large-screen display intuitive clear, accurate and reliable    numerical, simple operation, easy to use. The system with a variety of interlocking interconnection    protection measures to effectively prevent misuse.

2, the operating system with EPS electronic automatic leveling system, can automatically adjust the    parallelism of the movement axis to protect product quality.

3, the equipment on the material, pre-bending, roll round in a rolling process to complete the pre-bending the    amount of the remaining straight ≤ 1.5 times the thickness, high precision roll, to meet the requirements    of automated welding.

4, the model uses inverted side roller cylinder patented technology to improve the sliding stability of    equipment failure to reduce the same time, can effectively reduce the height of the fuselage, the maximum    extent to meet the needs of ground installation, reduce the user equipment foundation pit and other    infrastructure costs.

5, in strict accordance with the technical requirements of the rack and other welding parts for annealing shot    blasting, to remove the pressure, improve the body strength and stability.

6, the equipment can be selected within the lifting rack and the outer bracket, etc., can be controlled in the    process of winding the workpiece in the automatic deformation of the volume, auxiliary roll, reduce labor,    to provide product quality and efficiency.

7, the equipment can be equipped with four roll coiling machine roll roll device patented technology to meet    the requirements of the user roll cone-shaped workpiece, the patent has easy operation, the use of low    cost, good quality rolling and so on.



Widely used in transportation, petroleum, chemical, boiler, shipbuilding, hydropower, metal structure and other industries rolled round, curved and tapered workpiece.
