Hydraulic Press Brake Machine

wc67y series metal hydraulic press brake

wc67y series metal hydraulic press brake
wc67y series metal hydraulic press brake
wc67y series metal hydraulic press brake
wc67y series metal hydraulic press brake
wc67y series metal hydraulic press brake

Description

Reviews

The WC67K series bending machine has high productivity and high working accuracy. The use of different shapes of upper and lower molds can greatly improve work efficiency and is very suitable for small and medium-sized manufacturing industries.

Features of wc67y press brake


  • 1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.
  • 2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.
  • 3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
  • 4. Torsion axis synchronization for  slide synchronous mechanism.
  • 5. Adopt a mechanical stopper mechanism, stable and reliable.
  • 6. Back Gauge size and slide stroke controlled  by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
  • 7. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
  • 8. Inclined wedge deflection on the compensation mechanism, in order to guarantee access to high bending accuracy
  • 9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.

Technical Parameter



NO
Item
Value (for WC67K-30T/1600)
Unit
1
Nominal force
300
KN
2
Worktable length
1600
mm
3
Worktable height
850
mm
4
Slider stroke
100
mm
5
Max opening height
320
mm
7
Distance between columns
800
mm
8
Throat depth
320
mm
9
  Slider speed
V-working:9
V-return: 45
V-unload: 50
mm/s
10
Main motor
3KW
11
Oil pump
25Mpa
12
System max pressure
25
Mpa
13
Dimension
1600×1200×1600
mm


Main Outsourcing parts



NO
Part Name
Outsourcing Manufacturer
1
Hydraulic system
German REXROTH
2
Oil pump
USA SUNNY
3
Seal ring
Japan VALQUA
4
Tubing connector
German EMB
5
Electrical
Schneider
6
Ball screw
Taiwan HIWIN
7
Linear guide
Taiwan HIWIN
8
Servo motor
 ESTUN
9
NC system
Estun E21( More CNC system for optional )

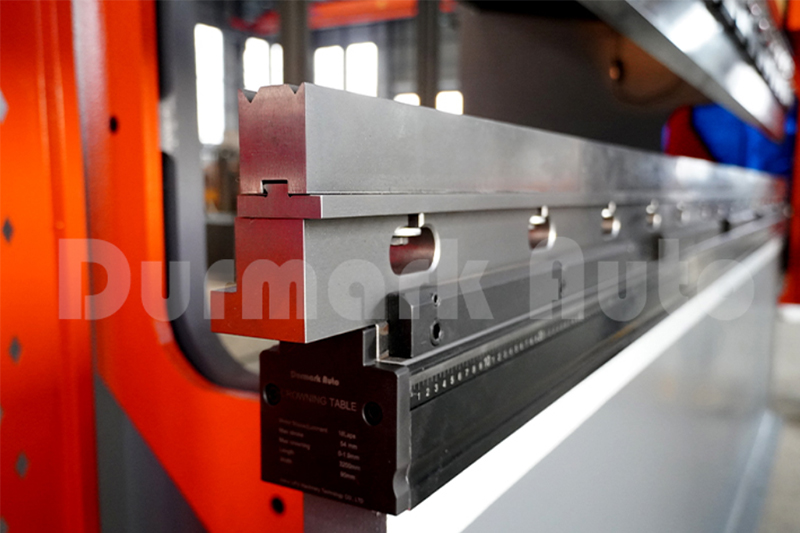

Product display diagram


About the application of wc67y hydraulic press brake


wc67y hydraulic press brakes are used as production tools for roof trusses, shelves, wall frames, keels, roof panels, wall panels, floor panels, doors and windows, containers, pipes, steel sheet piles, etc.

Our clients


Our products are sold to more than 40 countries and regions, and our customers include small factories, distributors, and retailers. The products are of high quality, cheap, and very popular.

FAQ


1.How about your machine quality? We are worry about the quality.

 RE: DURMARK is a mature brand in CHINA,through many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brilliant machines.And where there are our machines,there are good reputation and terminal user satisfaction

2. Whether the machine price can be more discount?

RE: 1.DURMARK always provide high quality machine, with 10years experiences,our machine has enough quality standard to make sure the machine can work more than the real warranty period. In this way ,we will save a lot and think in advance for the clients.

RE: 2. Actually DURMARK also think about our price level,we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines. We welcome you negotiate with us and get a good satisfaction.

3. How about your manufactory in China?

RE: DURMARK located in MaAnShan City, AnHui province which is the leading area in China and also in the worldwide as the center of the metal plate solution machines,We have worked about 10 years in this area.Rich experiences in this field with professional technical supporting and oriented service

If you need this wc67y series metal hydraulic press brake, please contact us immediately, we will give you the best price!
